What Is AdBlue Crystallisation?

AdBlue is a precisely formulated mixture of high-purity urea (32.5%) and deionised water (67.5%). It is injected into the exhaust stream before the SCR (Selective Catalytic Reduction) catalyst, where it reacts with exhaust gases to convert harmful nitrogen oxides (NOx) into harmless nitrogen and water vapour.

Crystallisation occurs when the water content of AdBlue evaporates — leaving the urea component behind as a solid white mineral deposit. This happens most readily at the injector tip, where AdBlue is exposed to the high-temperature exhaust environment every time the engine runs. It can also occur at fittings, connectors, vents, and anywhere along the system where AdBlue is present and airflow allows evaporation.

A small amount of white residue around the AdBlue filler cap or at external connectors is considered normal. Heavy crystallisation inside the system — particularly at the injector nozzle or inside the supply lines — is a fault condition that requires attention.

How Crystallisation Damages the AdBlue Injector

The AdBlue injector is a precision component that delivers a finely calibrated spray of AdBlue into the exhaust pipe at the correct rate and pattern. It operates in a harsh thermal environment — close to the exhaust stream — which makes it particularly vulnerable to crystal buildup.

Tip blockage and spray pattern degradation

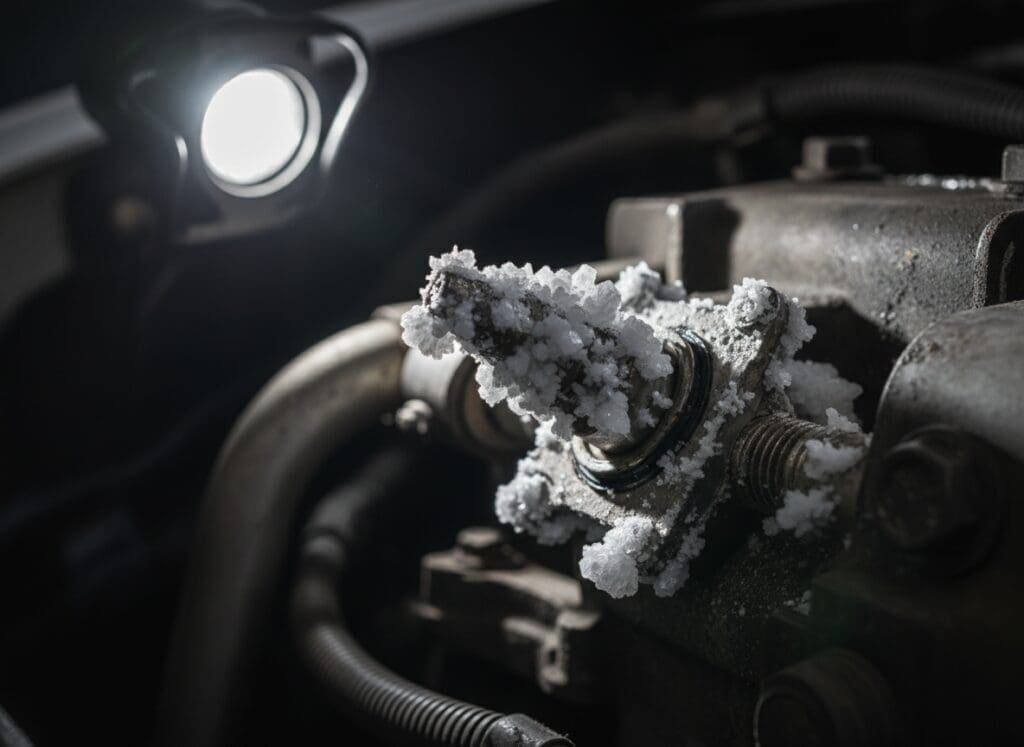

Crystal deposits forming at the injector tip are the most common failure mode. Even a partial blockage changes the spray pattern — instead of a fine, even mist, AdBlue may be injected as a stream or at an incorrect angle. This creates uneven distribution across the SCR catalyst face, which reduces catalyst efficiency and triggers the P20EE fault code (SCR NOx catalyst efficiency below threshold).

Needle seizure

If crystalline deposits work their way inside the injector body — which happens when the return purge cycle is insufficient or when degraded AdBlue is used — the internal needle mechanism can seize. A seized injector produces either no AdBlue injection at all, or constant leakage, neither of which the system can tolerate. Replacement is required at this point; cleaning alone is rarely sufficient.

Abrasive wear from crystal ingestion

Crystals that break off from internal deposits and enter the supply line can reach the injector tip and cause abrasive wear to the precision components inside. This type of damage may not trigger an immediate fault but leads to progressive deterioration of injection accuracy and earlier-than-expected failure.

How the Pump Gets Affected

The AdBlue pump draws fluid from the tank through a filter screen and delivers it to the injector at a controlled pressure. The pump is not designed to handle particulate contamination — it relies on the filter to protect it. When crystallisation occurs in the tank or lines, it compromises that protection.

Filter blockage

Crystals accumulating in the AdBlue tank settle out over time and are drawn toward the pump inlet. The pump filter becomes progressively blocked, restricting flow. The pump works harder against the restriction, runs hotter, and is subject to premature wear. A partially blocked filter often appears as a P204F code (reductant pressure too low) before the pump itself fails.

Pump overheating and failure

A pump working against a blocked filter will overheat. Modern AdBlue pumps include a heater element (to prevent freezing in winter), and the thermal management of these units is calibrated around normal flow resistance. Sustained operation against a restricted filter exceeds the design limits and leads to pump motor failure.

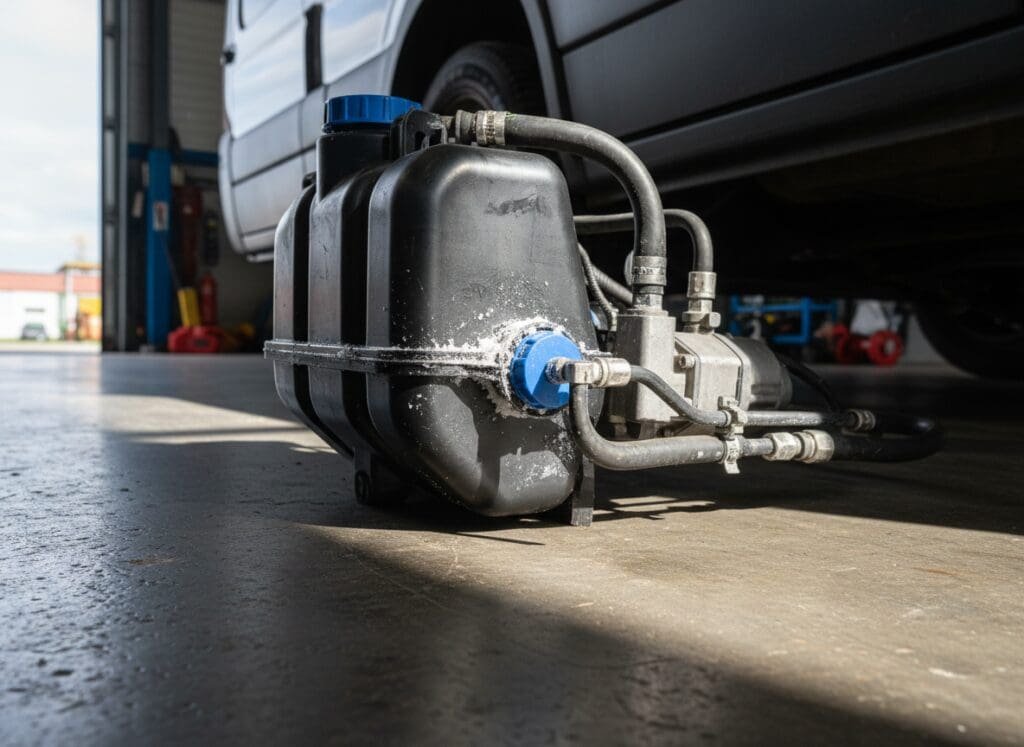

Tank contamination requiring full replacement

In severe cases of crystallisation — particularly where contaminated or degraded AdBlue has been used over an extended period — the tank itself can accumulate a significant deposit layer. This may require professional cleaning or, in the worst cases, tank replacement. Attempting to flush a heavily contaminated tank without specialist equipment rarely clears all deposits.

Fault Codes Associated with Crystallisation Damage

Multiple codes appearing together — particularly P20EE alongside P204F or P204E — strongly suggest a crystallisation-related fault chain rather than a single component failure. A systematic approach to diagnosis is more effective than replacing components one at a time.

What AdBlue Crystallisation Repair Actually Costs

Repair costs vary significantly depending on which components are affected and the extent of the damage. The following ranges reflect typical mobile repair costs — workshop costs may differ.

For a broader breakdown of AdBlue repair costs, see our AdBlue Repair Cost UK guide.

When Repair Makes Sense — And When a Delete Does

Crystallisation damage falls on a spectrum. At one end, there is a minor injector tip blockage on a low-mileage van with no prior history — a straightforward repair. At the other, there is a high-mileage commercial vehicle where a second or third crystallisation fault has caused both injector and pump failure, with deposits throughout the system.

Repair is generally the right call when:

• This is a first fault on a van with no prior AdBlue history
• The vehicle is under warranty
• Damage is limited to a single component (tip blockage only, or filter only)
• The root cause can be addressed — e.g., switching AdBlue supplier, improving storage

AdBlue delete may be worth considering when:

• The same fault has recurred after a previous repair
• Multiple components have failed (injector and pump)
• The vehicle is high mileage and the total repair cost represents poor value
• The van is a commercial vehicle used in private fleet operation

AdBlue delete removes the urea dosing function from the ECU entirely. There is no more crystallisation, no more SCR fault codes related to the dosing system, and no further exposure to AdBlue-related repair costs. See our AdBlue Repair vs Delete guide for a full comparison, or visit the AdBlue Delete service page for details on what the process involves.

Preventing Crystallisation Before It Starts

The best way to manage crystallisation is to prevent the conditions that cause it. These steps apply particularly to fleet operators and high-mileage commercial van users:

• Use quality AdBlue from a reputable supplier — ISO 22241-compliant fluid only
• Check AdBlue storage conditions and shelf life — degraded AdBlue accelerates crystallisation risk (see our crystallisation causes guide)
• Don’t ignore early warning lights — a minor system alert addressed promptly is always cheaper than a blocked injector
• On high-mileage vans, consider a periodic injector tip inspection as part of routine servicing
• Use dedicated AdBlue dispensing equipment — contamination from fuel or oil accelerates crystal formation
